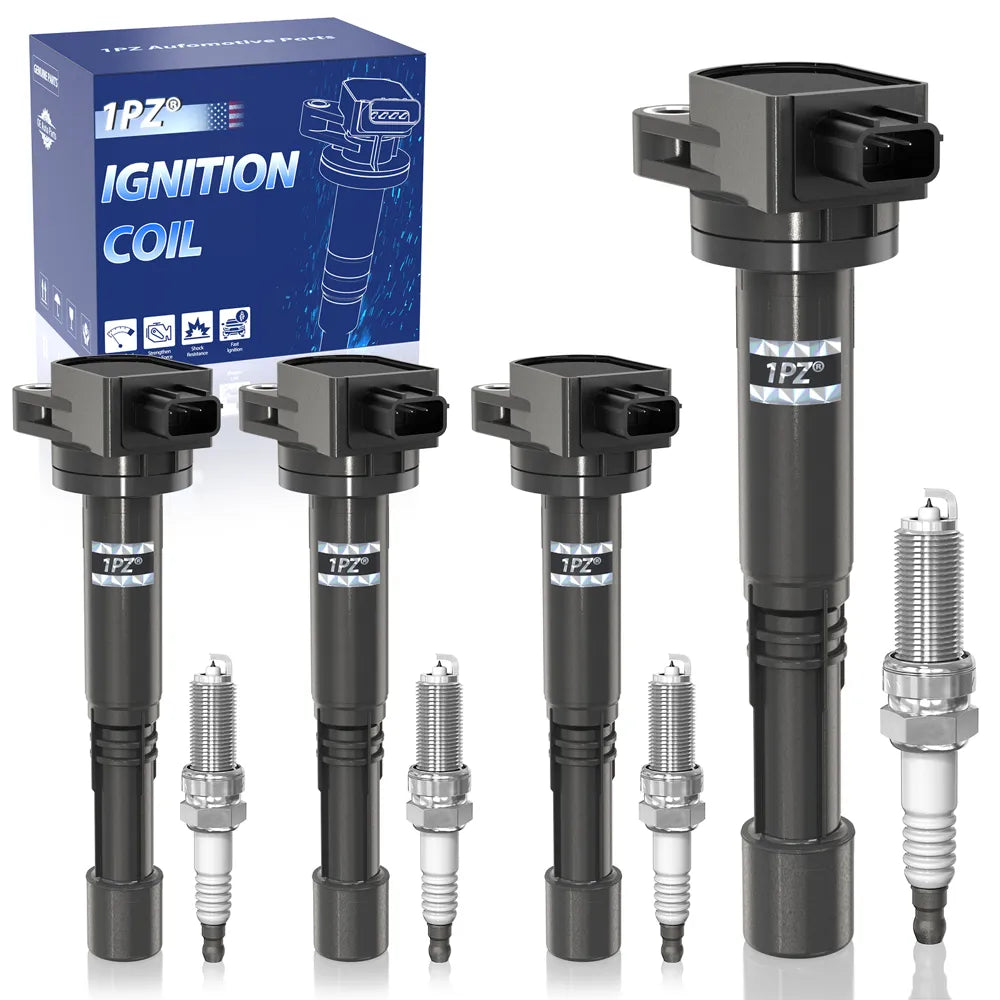

H4795 4x Genuine Ignition Coil UF602 For Honda Accord CR-V Civic 2.4L L4 30520-R40-007

Features & Benefits:

Engineered and tested to match or exceed OE for spark energy output,
impedance, and durability.
Tested at extreme engine performance condition at 7200 RPM.
Advanced thermoplastic coil connector ensures proper connection
and resists fractures caused by heat and thermal cycling.
High-temp boot prevents high-voltage leaks,
while stainless-steel spring provides proper connection with spark plug
High-impact housing material ensures superior bond to epoxy for
longer life in all operating conditions.
Internal sintered core surrounded by grain-oriented,
magnetic steel maximizes high-voltage output at all speeds.
Primary (23 gauge) and Secondary (43 gauge) copper wire ensure high-voltage availability
for peak performance while reinforced bobbins
prevent voltage flashover for extended service life.
Copper wires using higher insulation grade ensure heat resistance
and prevent high voltage breakdown.
Optimum wire distribution developed by extensive testing
ensures superior functional parameters and durability.
Isolator manufactured using high voltage-resistant thermoplastics
to prevent premature coil failure.

Install Method:

1. Disconnect the negative terminal on your battery.
2. Locate the ignition coil that needs to be replaced.
3. Disconnect each cable leading into the coil.
4. Release the clip on the plug running into the sideof the coil.
5. Remove the coil from the engine bay.
6. Insert the bolts to hold the coil in place.
7. Connect the plug into the side of the ignition coil.
8. Insert the cable into the ignition coil in order.
9. Reconnect the battery.
10. Start the vehicle to test the new ignition coil.
Specification:

Coil Type: Electronic
Color: Black
Connector Gender: Female
Connector Type: Plug In
Mount Type: Bolt On
Mounting Position: Engine Head
Terminal Gender: Male
Terminal Quantity: 3 Pins
Terminal Type: Blade
Voltage: 12

• 2.4L L4 (Base)

• Sedan & Coupe Models:

• 2.4L L4 (LX/LX-S/LX-P/EX/EX-L/SE)

• 3.5L V6 (EX/EX-L)

• Performance Models:

• 2.4L L4 (Si Coupe/Si Sedan)

• 2.4L L4 (EX/EX-L)

• 2.4L L4 (LX/EX/EX-L/SE

• Replace Part OEM Number ：

• Note:

• Package Include:
